Look a little closer
See the mechanism
Cross the line, then bear against a stop
Read every step
- Before center. The moving draw-link pin B is below the fixed A–C line. Tension in the compliant draw link pulls B toward keeper C and tends to rotate the handle back toward the open side.
- At center. B, A and C align, with the base hinge A between B and C. The draw-link span reaches its maximum in this simplified model. Elastic compliance in the draw link, joint or gasket allows the linkage to pass this position; three fixed rigid lengths would not.
- Past center, at the stop. B has crossed above the A–C line. Draw-link tension now tends to turn the handle farther toward its physical stop. The stop prevents that motion and supports the closed condition. Exact center by itself is not the stop or a universal security lock.
Original solved planar draw-latch principle, not a particular aircraft or suitcase product. A and C stay fixed; AB stays constant. The B–C link includes visible elastic compliance, permitting its changing span. At dead center the order is B–A–C. The stop contacts the closed handle after center. No holding-force rating, vibration immunity or equal-link-length claim is made.
Diagram basis: DESTACO: over-center linkage and fixed stop; Southco: compliant draw-latch family.
Sources: Southco · DESTACO · US patent publication via Google Patents
The lever puts the connecting link under tension

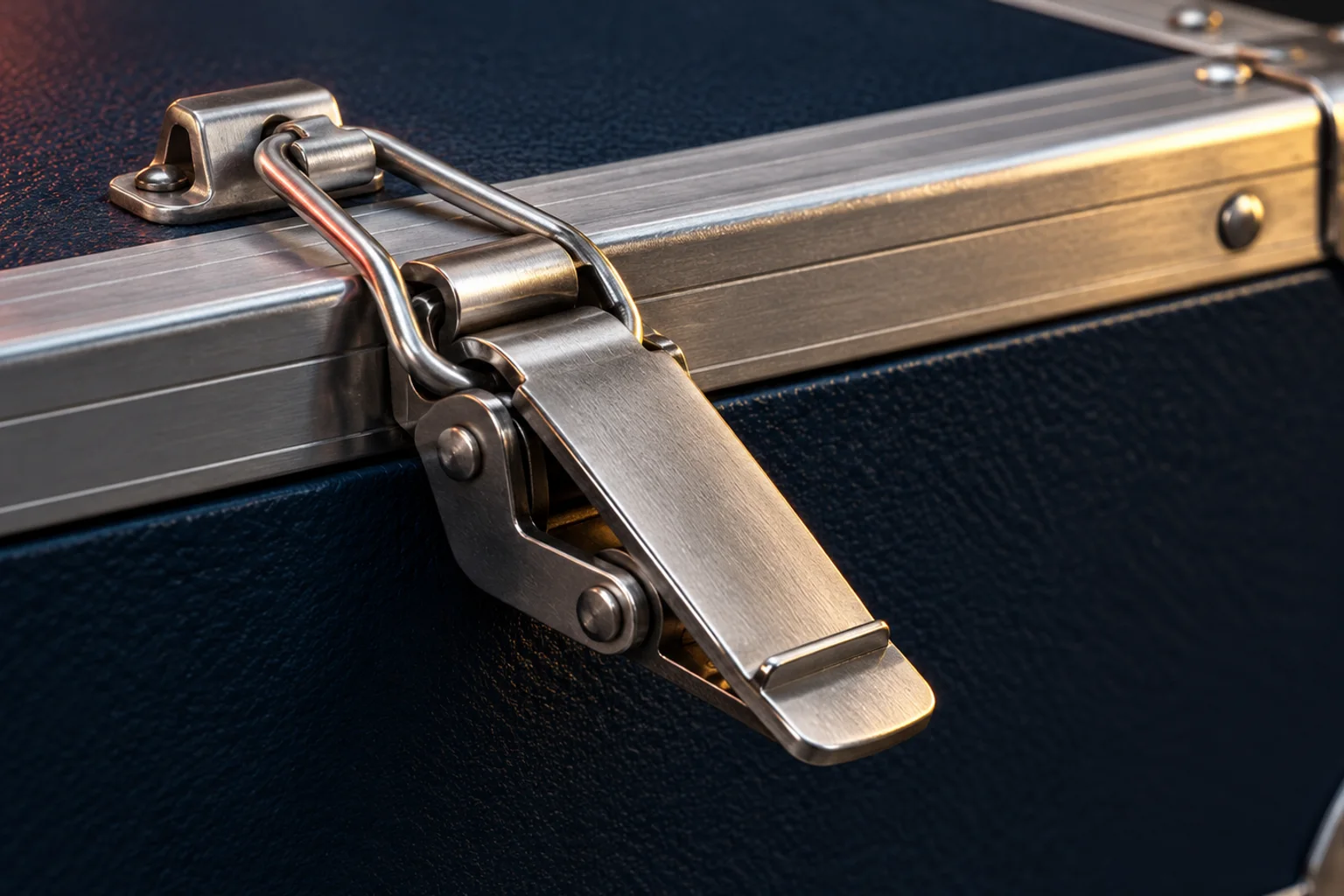

A draw latch has a keeper on one part and a lever assembly on the other. A hook or link engages the keeper. Moving the lever draws the parts together and loads that connection, often while compressing a gasket or taking up springy movement in the assembly.
Southco's draw-latch families use this arrangement to pull panels together. The handle's leverage helps produce the clamping action, but the final position is what distinguishes an over-center latch from a lever you must keep holding down by hand.
At center, tension lines up with the lever pivot
The link pulls along the line between its attachment points. While that line lies on one side of the lever's fixed pivot, its pull creates a turning effect in one direction. When it crosses to the other side, that turning effect reverses. The important detail is which side the loaded line passes, not whether the handle looks visually level.
In the simplified draw-latch geometry, the moving link pin passes the fixed lever pivot's centerline and settles just beyond it. The load can then turn the lever against its closed stop. Springiness in the link, joint or clamped parts allows the assembly to move through the most extended position and into that final state.
Sources: DESTACO · US patent publication via Google Patents
The stop gives the turning force somewhere to act
Exact center alignment alone doesn't supply the same stable closed arrangement. DESTACO distinguishes the straight-line condition from a deliberately designed amount of over-center travel. Its explanation includes a fixed stop as part of the locking action.
To open the latch, the handle must move back from the stop and carry the linkage through the center region. Real products may also have a separate safety catch, lock or retainer. Those extra features have their own purpose; over-center geometry doesn't make every latch impossible to open through vibration, wear or an unintended force.
Sources: DESTACO · US patent publication via Google Patents
The thing to remember
Passing center changes the load's turning effect. A small amount of travel beyond center lets tension hold the lever against a closed stop.
What this example leaves out
This is a qualitative over-center draw-latch explanation. The figure uses an explicitly compliant simplified linkage, not the complete aircraft latch in the cited patent. It doesn't give a load rating, adjustment procedure or vibration-proof guarantee.
