Look a little closer
See the mechanism
The opening expands, then catches the neck
Read every step
- Head approaches. The stud head is below the socket ring. Its enlarged head is wider than the ring’s resting opening, so it cannot pass without displacing the spring ring.
- Ring expands. As the rounded head enters, it pushes the split ring outward. The two visible ring sections move apart; the split lets the whole ring expand rather than requiring a rigid hole to stretch.
- Ring returns at the neck. After the head passes, the ring returns inward around the narrower neck. The wider shoulder above it resists separation. This principle view omits the cited socket’s separate directional-release lip and drainage details.
Original head/ring/neck principle section based on the named US7814624B2 example, not a complete YKK product cutaway. Two colored sections represent opposite sides of a split ring. The separate directional unsnap lip and drain holes are deliberately omitted; release behavior is not generalized to every clothing snap.
Diagram basis: US7814624B2: split ring 144, head 146 and neck 148.
Sources: YKK Danmark · YKK Corporation; United States patent publication via Google Patents
Look inside the socket rather than at the cap
YKK distinguishes several snap systems, including S-spring, ring-spring and plastic designs. In its ring-spring description, the socket contains a split-ring spring that holds the mating stud. Changing a decorative cap doesn't by itself tell you which spring is hidden underneath.

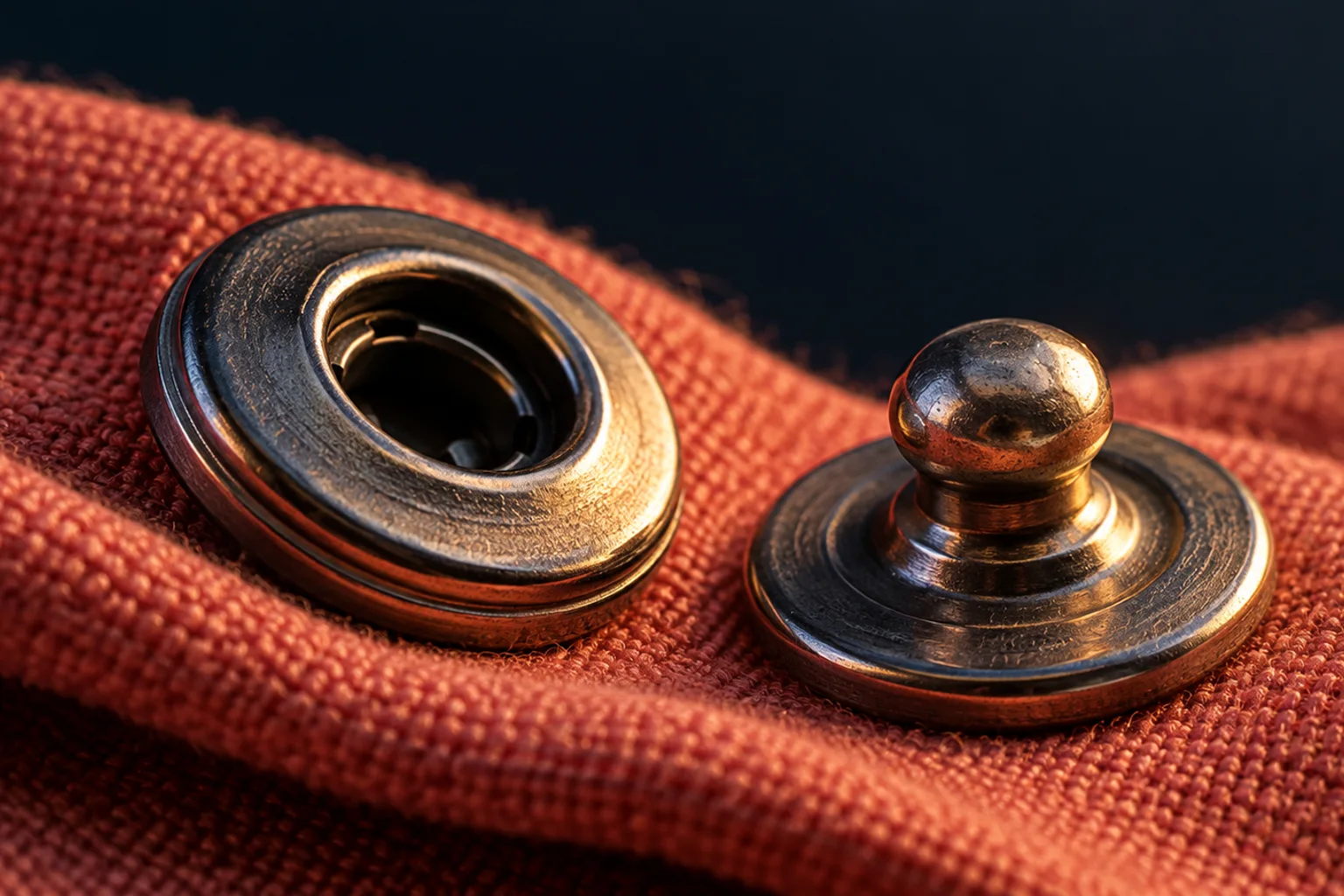

The stud and socket each attach to their own side of the material. Their mating shapes create the opening and closing action. Attachment to the garment and engagement between the two halves are separate connections.
Sources: YKK Danmark
The head is wider than the ring's resting opening
A documented example in US7814624B2 makes the sequence explicit. Its ring's resting inner diameter is smaller than the enlarged stud head. The split lets the ring flex outward as that head enters, then return when it reaches the reduced-diameter neck.
The wider head now sits beyond the ring. Pulling the halves apart requires the ring to expand again so it can pass back over that head. The narrower neck gives it somewhere to rest between those movements.
Sources: YKK Corporation; United States patent publication via Google Patents
A directional lock is an additional feature
The same patent adds a lip that restricts where separation can begin. Opening starts on the opposite side, where the ring can flex over the head before the lip is freed. That directional feature is separate from the basic expansion-and-return action of the split ring.
Sources: YKK Corporation; United States patent publication via Google Patents · YKK Danmark
The thing to remember
The ring briefly expands to admit the stud head, then contracts at its neck. Extra locking features depend on the particular snap.
What this example leaves out
This explains ring-spring engagement with a named patent example. The principle figure omits that example's drain and directional-lip features. S-spring, plastic and other snaps have different internal geometry and release behavior.
