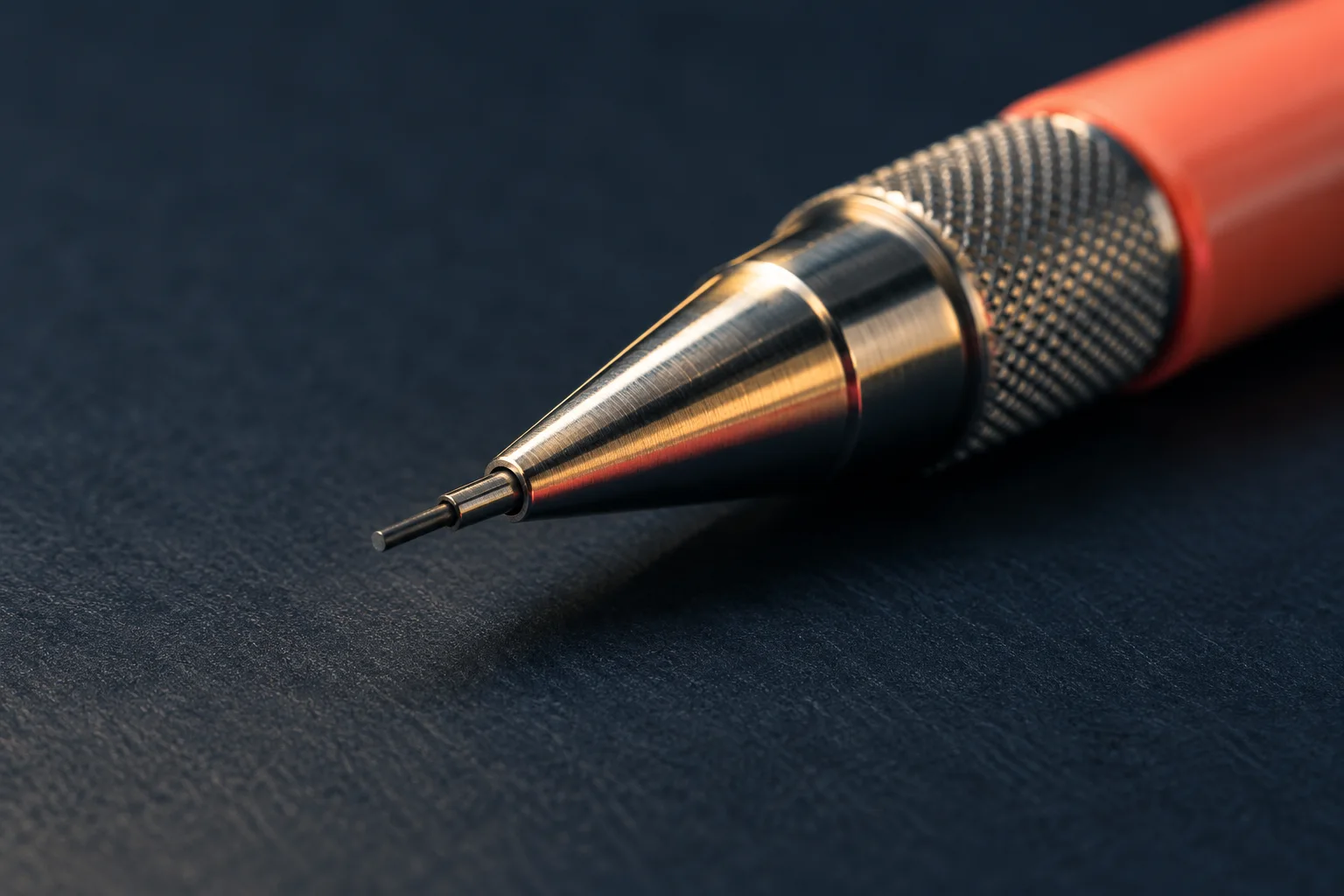

Look a little closer
See the mechanism
Advance, release, then reset
Read the diagram steps
Grip and advance. The pusher advances the receiver and collet together. Balls between the tapered receiver and split collet hold the jaws against the lead, so the lead advances with them.
Release the lead. While the button remains pressed, the receiver springs backward. The pusher keeps the collet forward against the tip projection, opening its jaws; the separate tip retainer holds the advanced lead.
Reset and grip. Releasing the button lets the pusher and collet return rearward. The collet grips the lead again as it returns to its writing position. The tip retainer limits backward lead travel during this reset.
Functional section of the ball-wedged collet described in US4521126A; not every pencil clutch. Springs and pusher are represented by their actions, not a complete part layout. Jaw opening and travel are exaggerated.
Diagram basis: US4521126A: collet, receiver, rolling elements and lead retainer.
Sources: Pentel Co. Ltd.; United States patent publication · TOMBOW PENCIL · Kotobuki & Co. Ltd.; European patent publication
Grip first, then move
The clutch, also called a collet, has split jaws around the lead. A surrounding part presses those jaws inward to grip it. The example here uses a tapered receiver and small wedging balls; other push-button pencils use different clamping details.
Pressing the button moves a pusher. At first the receiver and clutch move forward together with the lead still gripped. The pencil therefore carries a short length of lead toward the tip before releasing it.
Sources: Kotobuki & Co. Ltd.; European patent publication · Pentel Co. Ltd.; United States patent publication
Leave the lead ahead
At the end of that forward travel, the receiver meets a stop. Further button movement lets a spring pull the receiver backward while the pusher continues to hold the clutch forward, opening the jaws. When you release the button, the clutch returns and grips again. The tip's elastomeric retainer supplies a lighter frictional hold while the main grip is released.
A sound is not the feed itself
Tombow explains the familiar knock in its ring-type mechanism as an internal ring striking a wall. It also notes that the sound does not determine basic performance. A loud click tells you parts hit something; it doesn't establish how far the lead advanced.
Sources: TOMBOW PENCIL
The thing to remember
Watch the exposed lead between presses: it stays ahead while the mechanism inside prepares for another stroke.
What this example leaves out
The illustrated example is a push-button, ball-wedged collet from US4521126A. Ring-clamped, twist-feed, automatic and other pencil mechanisms differ. The drawing omits its separate retractable tip lock.
Sources & further reading
Source access dates are listed below. Manufacturer descriptions and patents support the specific constructions described, not every product.
- US4521126A — Mechanical pencil ↗
Pentel Co. Ltd.; United States patent publication · Retrieved 2026-10-17 · Collet, tapered receiver and balls; forward motion while gripped; relative release; springs; elastomeric lead retainer.
Selected patent embodiment, not proof of adoption in every modern pencil. Separate tip lock omitted. - Why does the knock sound ? ↗
TOMBOW PENCIL · Retrieved 2026-10-17 · Ring striking internal wall causes knock in described mechanism; sound is not basic performance.
Sound explanation for manufacturer ring mechanism, separate from selected ball-wedged diagram. - EP0184272A1 — Lead delivery mechanism for a mechanical pencil ↗
Kotobuki & Co. Ltd.; European patent publication · Retrieved 2026-10-17 · Lead chuck grips lead; clamping ring/sleeve and spring form another documented clamping arrangement.
Supports general grip and variation, not the illustrated ball-wedged feed cycle.
